DMZ subnet behind the ASAv

In this chapter, we add the DMZ subnet to place a web server that can be accessed from the Internet:

DMZ

Let’s start by creating AWS components:

  1. Create DMZ subnet.
  2. Create DMZ ENI with security group allow-all.
  3. Create a route table, associate it with DMZ subnet and add a default route entry for any destination (0.0.0.0/0) with the target of DMZ ENI of ASAv.
  4. Disable source destination check of DMZ ENI.
  5. Attach DMZ ENI to the ASAv instance.
  6. Reboot the ASAv instance so that DMZ ENI is recognised by ASAv operating system.
  7. Assign a secondary IPv4 address to Outside ENI and associate a second EIP.

Create DMZ subnet:

DMZ Subnet

Create DMZ ENI with security group allow-all:

DMZ ENI

Disable source destination check of DMZ ENI:

DMZ source dest check

Attach DMZ ENI to the ASAv instance:

Attach DMZ ENI to ASA

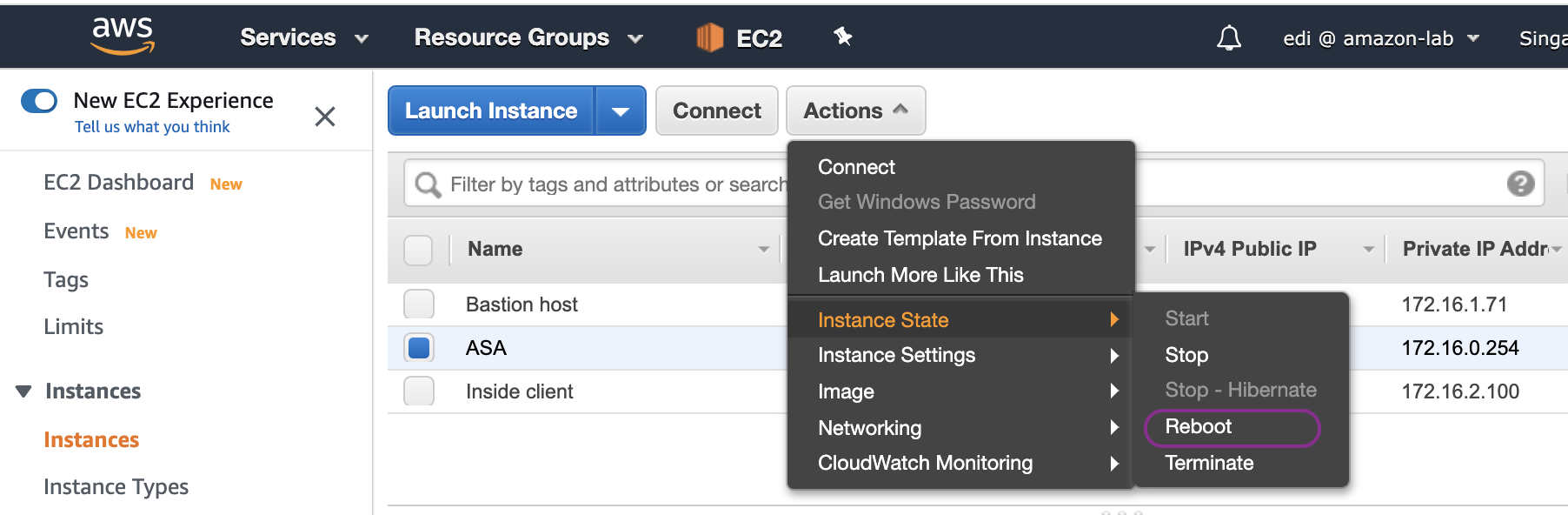

Reboot the ASAv instance so that DMZ ENI is recognised by ASAv operating system:

Reboot ASA

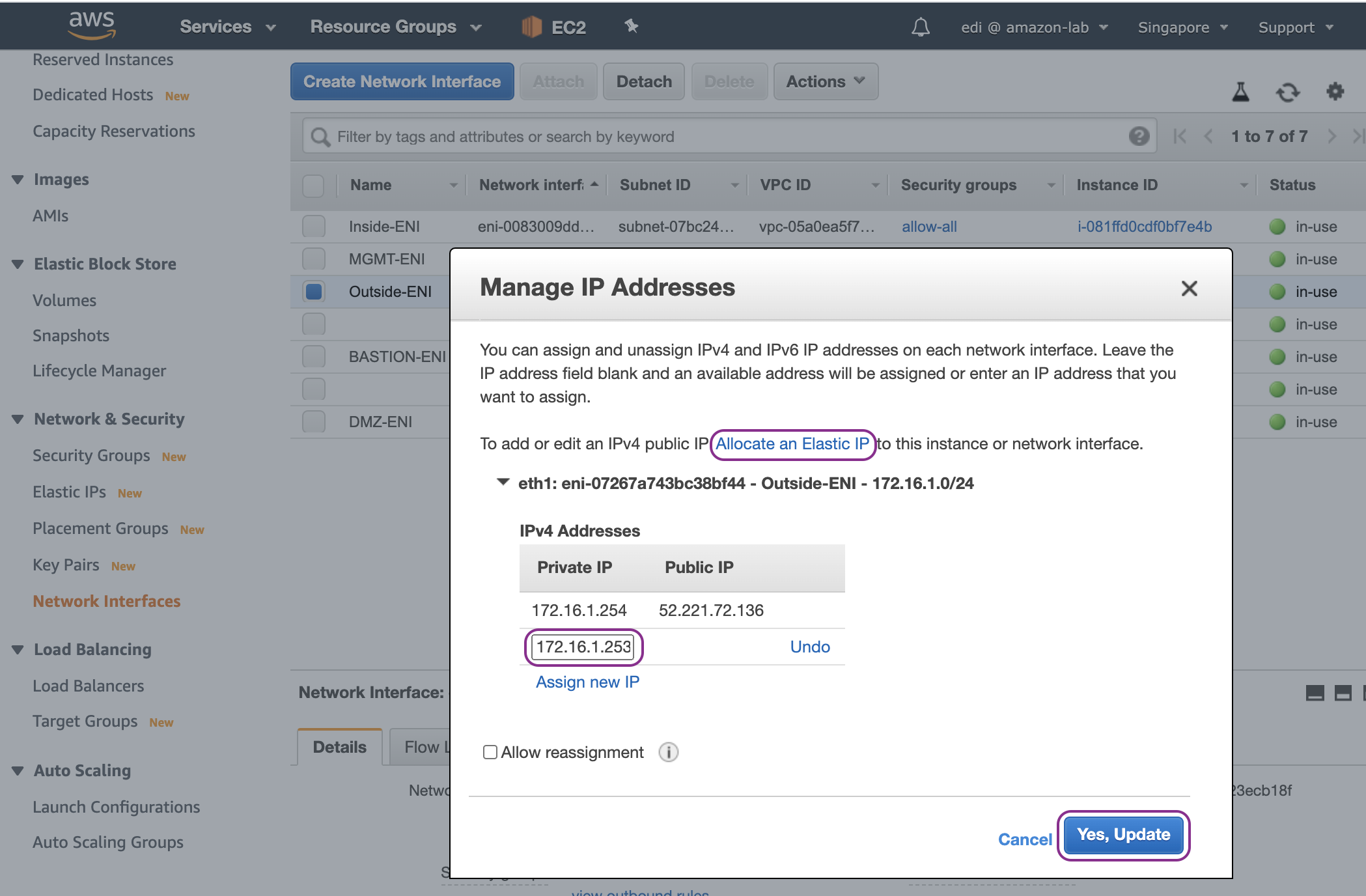

Assign a secondary IPv4 address to Outside ENI and associate a second EIP:

Secondary IP for Outside ENI Secondary EIP for Outside ENI

On ASAv, first we configure the IP address of dmz interface:

interface TenGigabitEthernet0/2
nameif dmz
security-level 50
ip address 172.16.3.254 255.255.255.0
no shut

We create the following network objects and auto-NAT rule:

object network ubuntu-server-dmz
    host 172.16.3.100
object network ubuntu-server-outside
    host 172.16.1.253

object network ubuntu-server-dmz
    nat (dmz,outside) static ubuntu-server-outside service tcp www www

Then we create access-list entry and apply it to ingress traffic of outside interface:

access-list outside_access_in extended permit tcp any4 any4 eq www log disable
access-group outside_access_in in interface outside

If we want to allow hosts in DMZ subnet to initiate traffic to access Internet, we can add this NAT (hide-NAT) rule:

nat (dmz,outside) after-auto source dynamic any interface

Lastly, launch an EC2 instance as a web server in DMZ subnet with private IP 172.16.3.100 and access it via its public IP http://13.250.140.197

NOTE Double-NAT has happened. That is, IP address 172.16.1.253 (outside static NAT of ASAv) is translated by AWS IGW to 13.250.140.197 (Elastic IP).

Double NAT
